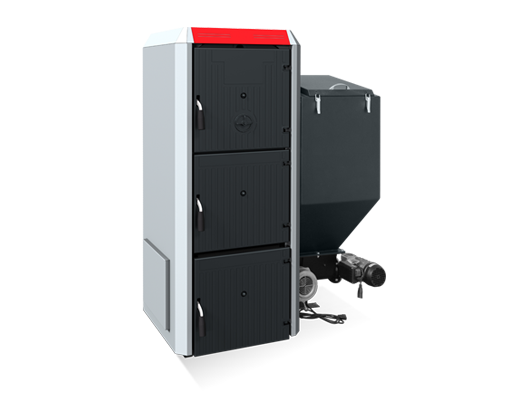

The Czech TIGER boiler for solid fuel with automatic controls and minimal operating requirements provides environmentally-friendly and cost-cutting heating for houses, business premises and medium-large buildings, and may also be used for heating water as well. The boilers burn size 2 lump brown coal.
Combustion is controlled by an electronic unit, making the automatic boiler very environmentally-friendly. The boilers meet emission class 3 under EN 303-5 - the strictest values for emissions released from a boiler into the atmosphere. The maximum economy mode of combustion offers savings of up to 30% compared to ordinary solid fuel boilers. The boiler achieves efficiency levels of up to 87.4%.
Thanks to their efficiency and the 250 litre storage container, the boilers are easy to feed. The capacity of the storage container will ensure about 3 to 4 days of normal output. In summer mode, the fuel can provide hot water for up to 10 days. The boilers can be controlled by a room thermostat which switches off the central heating pump. The boilers need cleaning once every 3 weeks on average.
The boilers are regulated by a PANDA control unit, which maintains the desired water temperature in boilers fitted with a screw feeder. Its advanced functionality ensures the economical and automatic operation of the entire central heating installation. The simple controls include regulation of the central heating pump, hot water, underfloor heating and circulation. The unit can be controlled by a wired or wireless room thermostat. Up to three remote panels are available for controlling a boiler from any room in the house. The control units work in five operating modes: normal, day/night, economy, calendar and thermostat mode. The units can also be controlled via a GSM interface.

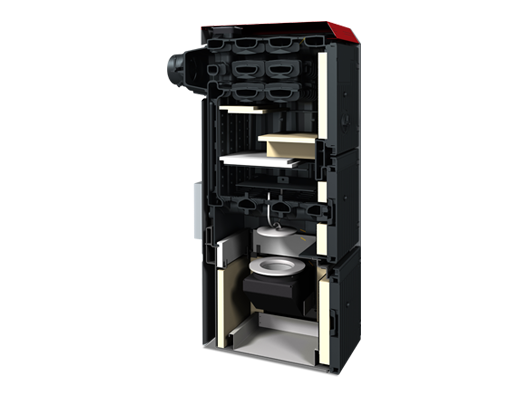

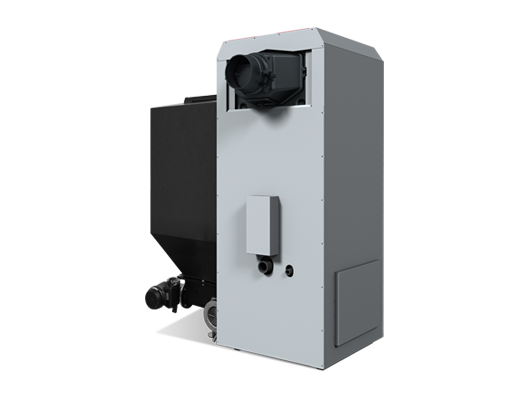

The main part of the boiler consists of a cast-iron body made up of a number of cast iron components, which are pressed together using inserts and secured with anchoring screws. The element always consists of front, back and middle cells. The main heat energy transfer from combustion products to heating water takes place in the boiler element. The top cleaning door and middle door are located on the front cell. The smoke nozzle taking the flue gases to the chimney is located on the rear component.
The complete cast iron body is then placed on a base. The base is 5 mm thick welded steel. The ashtray door is located at the front.
The square universal burners consist of a cast-iron furnace, air mixing chamber and feeder for combustion. The feeder screw runs along the entire length of the feeder right up to the furnace and is fitted with an opposing thread where it meets the furnace, forcing the material upwards as required. This get rids of any sinter, which is forced out through the sides into the ashtray. Thanks to its extended shaft, the feeder is firmly anchored and makes no squeaking noises during operation. Thanks to the square shape and drawing in of air from four sides to the centre to encourage combustion, the burners achieve high combustion temperatures and efficiency levels even without the use of deflectors. The top part of the burner consists of two cast iron rings. The burners are placed in the base, on the left or right side.
The upper feeding doors include a ceramic layer to encourage combustion.
The fan positioned on the burner flange beneath the fuel storage container blows primary air into the burner. The fan speed is set electronically.
The fuel storage container is located next to the boiler above the feeder screw.
The feeder is fitted with a wax plug for securing the system against back-burn.
|Marking boilers||TIGER 20||TIGER 25||TIGER 30||TIGER 35||TIGER 40||TIGER 48||TIGER 55|
|Number of elements||4||5||6||7||8||9||10|
|Nominal output (coal)||kW||20||25||30||35||40||48||55|
|Nominal output (pellets)||kW||20||25||30||35||40||48||55|
|Minimal output (coal)||kW||6,5||8||10||12||14||15||19|
|Minimal output (pellets)||kW||6,5||8||10||12||14||15||19|
|Nominal efficiency (coal)||%||80||81||81,5||82||82,5||83||84|
|Nominal efficiency (pellets)||%||84,5||85||85||85||86||87||87,5|
|Exhaust temperature - nominal output (coal)||°C||182||172||166||157||163||169||175|
|Exhaust temperature - nominal output (pelletsl)||°C||157||155||152||150||150||150||150|
|Exhaust temperature - minimal output (coal)||°C||97||101||105||109||106||103||100|
|Exhaust temperature - minimal output (pellets)||°C||96||97||99||102||98||94||91|
|Recommended operating temperature heating water||°C||50 - 80|
|Minimum return water temperature||°C||55|
|Max. operating pressure||bar||4|
|Average electrical power consumption||W||60|
|Volume of water in the boiler||l||33,3||35||44,7||50,4||56,1||61,8||67,5|
|Volume of the fuel container (coal)||l||250|
|Size filling opening container (coal)||mm||440 x 300|
|Boiler depth (incl. chimney)||mm||640||750||860||970||1080||1190||1300|
|Diameter of the flue exhaust||mm||156||176|
|Connection of the heating and returning water||“||2|
|Emissions class EN 303-5 - wood/coal||-||4|
|Heated area to:||m2||180||200||250||300||350||450||550|
